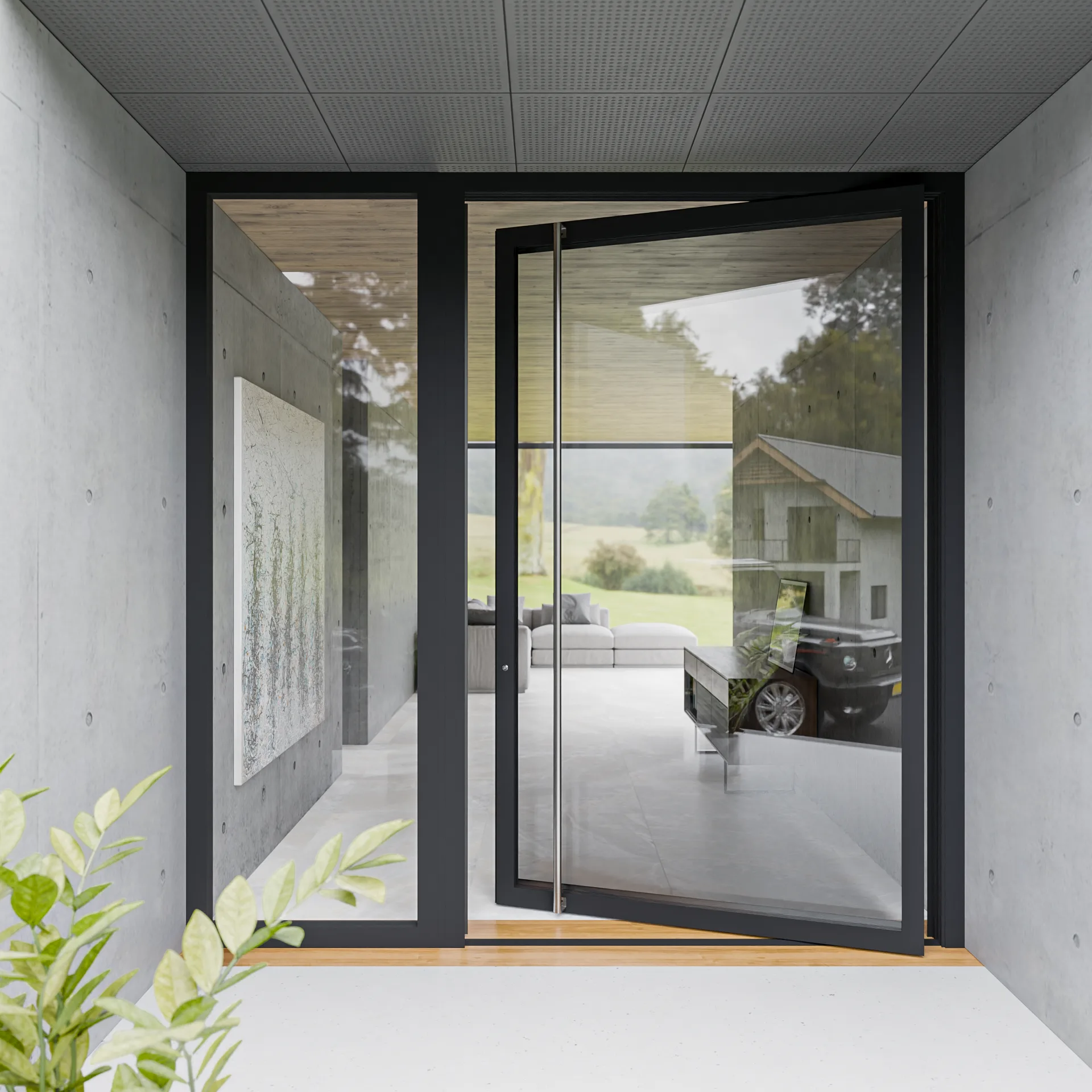

Pivot door PV5000

PV5000 pivot door — axial opening with dramatic architectural presence, oversized glazing and premium profiles for statement entrances.

The PV5000 pivot door embodies the convergence of German engineering excellence and contemporary architectural design. Positioned in the premium segment, this collection meets the demands of the most discerning residential and commercial projects, where visual impact and performance are equally valued.

profiles are manufactured with German precision from robust aluminum sections, delivering exceptional structural rigidity even at generously scaled doors. The PV5000 pivot system employs top-tier mechanical components, with glazing configurable as triple-pane units featuring advanced thermal insulation. Surface finishing offers versatile options — from contemporary matte lacquers to subtle metallic effects — all maintaining the minimalist aesthetic characteristic of the brand.

Thermal and acoustic performance is underpinned by high-density elastomer seals and multi-stage weatherproofing systems. Wind and water resistance are certified to European standards, even at non-standard door dimensions. The pivot mechanism incorporates precision ball-bearing rollers, guaranteeing smooth opening and controlled closing regardless of weight or frequency of use.

Customization is the defining strength: dimensions can reach spectacular proportions, while opening systems — axial pivot, off-center pivot or semi-pivot solutions — adapt to spatial logic. Complete RAL color palette, certified glass options, variants with fixed sidelights — all configurations are executed in-house by.

The PV5000 suits modern residential projects, commercial spaces with refined aesthetic demands, corporate offices and gallery entrances flawlessly. Pairing with solid wood flooring, aged concrete or large-format ceramics creates memorable spatial experiences.

The PV5000 pivot door rotates on an invisible vertical axis, rather than on traditional side hinges. This allows pure axial opening with impressive architectural proportions and wider passage spaces without hinge protrusion. The pivot mechanism with adjustable pins distributes the door's weight evenly across its entire height.

The PV5000, certified EN ISO 10077-2, achieves a Ud value of 0.69 W/m²K at the standard size of 2000×3000 mm, placing it in the highest insulation class for exterior doors. The 113 mm frame with 32 mm anti-distortion polyamide insulation, combined with dual-level EPDM perimeter sealing, ensures consistent thermal performance and minimizes heat loss at dramatic entrances.

The BKS security cylinder provides professional-grade protection for luxury entrances, equipped with 5 keys and an access card. The BKS security cylinder is designed to international anti-intrusion standards and perfectly integrated into the pivot mechanism, ensuring smooth operation and maximum security. Card access provides administrative flexibility for commercial spaces or premium residences.

The PV5000 pivot door requires professional installation with strict adherence to horizontal and vertical levels, as the pivot mechanism depends on geometric precision. The frame must be structurally solid and capable of supporting the pivot-specific weight distribution (steel beams in masonry or concrete structure). The 20 mm threshold, designed for accessible entry, integrates seamlessly with modern thermal isolation systems and requires no high barriers.

The PV5000 frame and leaf are made from aluminum profiles with polyamide thermal insulation core, finished with high-quality paint or premium veneer, depending on architectural intent. Regular maintenance consists of cleaning profiles with water and neutral soap, while the pivot mechanism benefits from annual lubrication of its pins. EPDM sealing should be inspected annually and replaced when worn to maintain thermal and acoustic performance.

The PV5000 pivot door is custom-manufactured to specific dimensions within technical production capacity and structural requirements of the pivot mechanism. Opening proportions can range from classical (2000×2500 mm) to spectacular (up to 2500×3500 mm), with the pivot mechanism and adjustable pins precisely calibrated for each configuration. The Ud value is certified at 2000×3000 mm; for other sizes, thermal performance is maintained by the frame's robust insulation.
