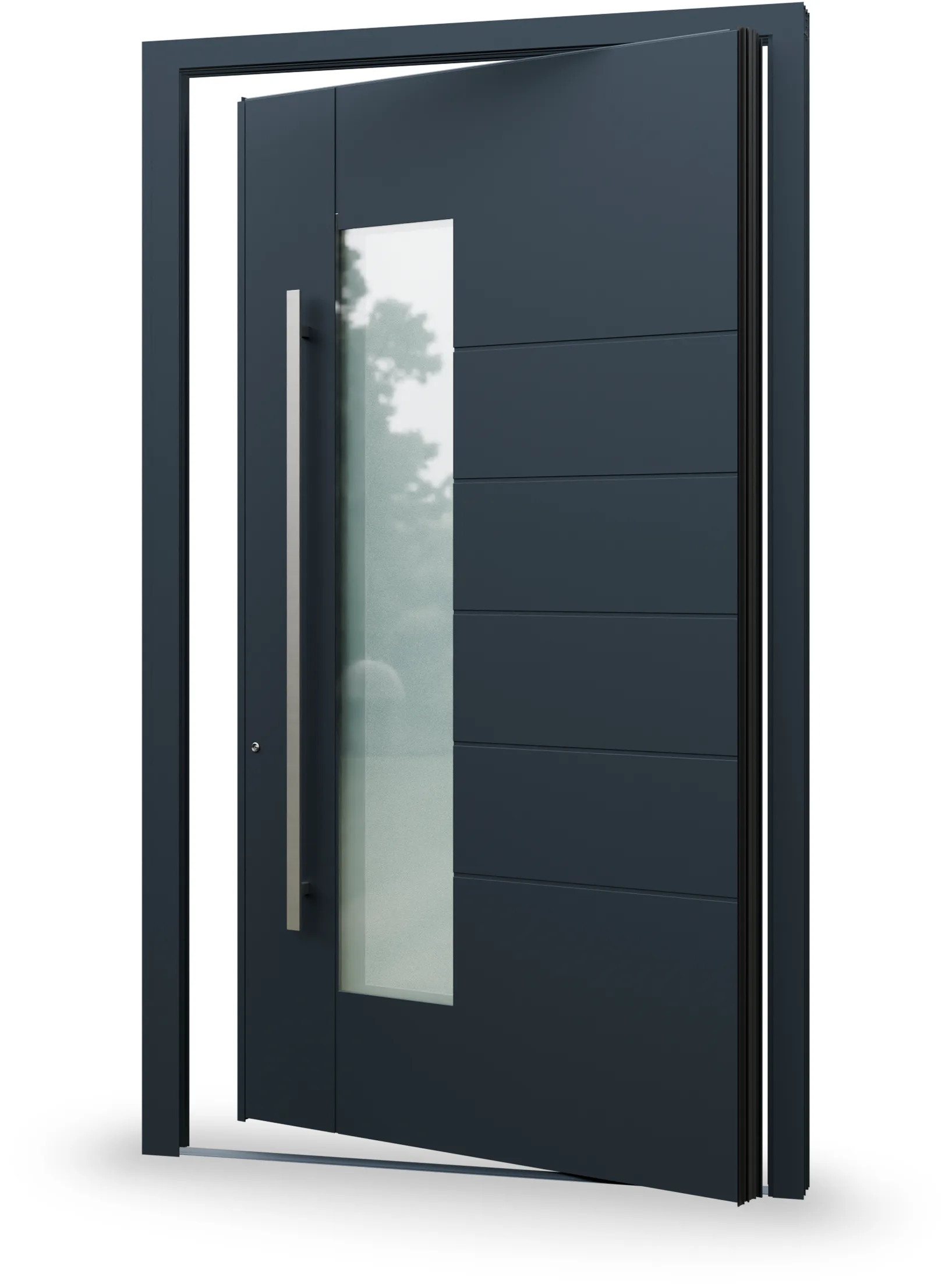

Pivot door PV1250

pivot door PV1250 — axial opening system with high-performance profile, premium finish and distinctive visual impact for contemporary façades.

The PV1250 pivot door is the reference choice for high-end architectural projects. It belongs to 's premium series, dedicated to exterior openings with exceptional visual and functional presence. The axial opening system allows fluid, controlled movement, transforming the entrance into a powerful architectural statement.

The door's profile is engineered from top-grade European materials, with surface treatment ensuring durability and refined appearance. The robust pivot system design offers uniform support across the full door height, minimizing deflection over time. The premium finish is available in classic and contemporary colors, adaptable to each project's aesthetic identity.

Thermal and acoustic performance of the PV1250 model is optimized for buildings requiring superior insulation. Profile depth and gasket configuration ensure efficient sealing, reducing energy loss and external noise transmission. The door meets European performance and safety standards, offering the assurance of a tested and certified product.

Customization of dimensions and alignment with each project's module is enabled by 's system flexibility. You can choose full panels or partial glazing configurations, depending on light and visibility requirements. The availability of a broad finish spectrum facilitates seamless integration into architectural concepts.

This is the ideal solution for main entrances, commercial or residential spaces with high aesthetic demands. It pairs exceptionally well with minimalist, brutalist, or contemporary interiors, as well as with restoration projects pursuing modernity. Combined with natural stone, polished concrete, or quality timber flooring, the PV1250 brings authority and refinement to the spaces it inhabits.

The PV1250 pivot door operates on a vertical axis (top-bottom bearing) instead of side hinges, allowing full 180° opening and creating a seamless visual line. The main advantage is architectural impact — no hidden hinges in the frame, just a linear cut, perfect for minimalist facades.

pivot bearings are fixed in structural mullions (top and bottom) and the door hangs from these axes with adjustable pins. The system supports any standard height up to 3000 mm, and vertical pin adjustment compensates for masonry tolerances and ensures perfect co-planarity between frame and leaf.

Thermal coefficient Ud = 0.69 W/m²K (to ISO 10077-2) — an excellent value for a pivot door. This is achieved through a 113 mm frame with 32 mm anti-warp polyamide and 2-level EPDM sealing. The result is insulation comparable to premium hinged doors, plus the added benefit of a pure visual line.

The door is equipped with BKS hardware featuring a security cylinder, 5 keys + card. The multi-point locking system is integrated into the pivot bearings and frame, ensuring simultaneous lock at multiple points. While specific RC certification is not stated, the robust construction (113 mm frame, aluminium/MDF/wood profiles) and pivot mechanics provide high resistance to forced entry.

offers finishes in paint (standard RAL), natural veneer, and HPL laminate — depending on your choice of material (aluminium, solid wood, MDF). Painted finishes require gentle cleaning, natural veneers are maintained with protective oil/stain, and HPL laminates are highly weather and UV resistant. Light dust and moisture exposure are sufficient for regular maintenance.

The door is custom-manufactured in any width and height up to 3000 mm. The 113 mm frame and pivot bearings are calibrated for each dimension. The 20 mm threshold (low-step access) remains standard. Limits are imposed by weight and pivot mechanism adjustment — our designer will advise you on optimal proportions for your opening.
