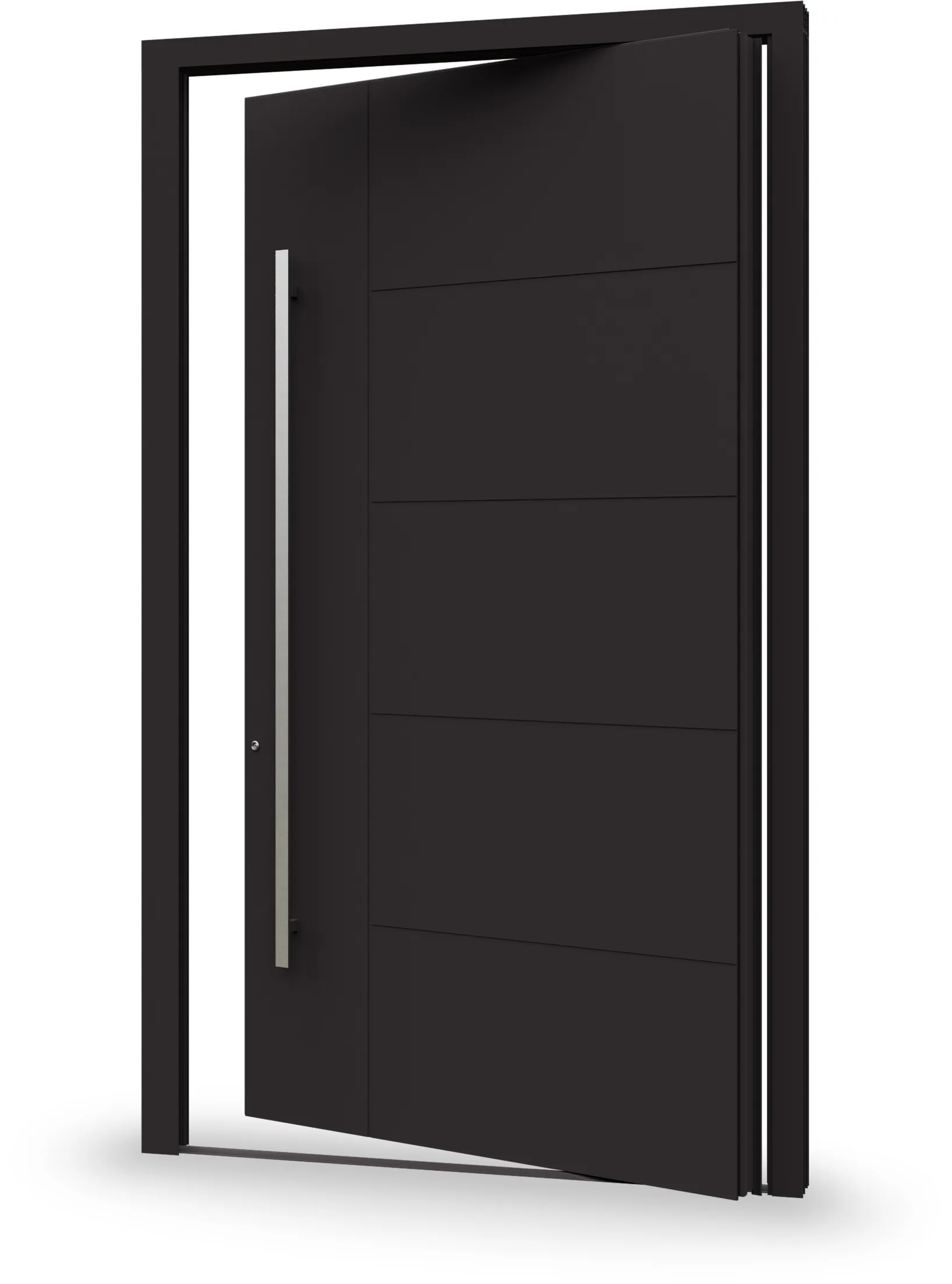

Pivot door PV1400

PV1400 pivot door — premium exterior solution with axial opening and distinctive architectural presence. German engineering, adaptable dimensions, reference-grade finish.

The PV1400 pivot door is an exterior solution that redefines access to premium residential and commercial spaces. Its design privileges axial opening—a completely free and controlled rotational movement—creating a fluid transit experience and distinctive architectural presence, hallmark of 's reference collections.

The structure combines robust aluminum profiles with consolidated construction, optimized for stability across large openings. The pivot and sliding system is calibrated to German precision, ensuring smooth operation regardless of door dimensions. The final surface accepts diverse finishes and glazing types, including thermopane units and acoustic insulation solutions tailored to the space's climate and comfort requirements.

Thermal and acoustic performance comply with European building standards—essential for exterior doors in temperate climates. The profile is tested for wind resistance, water integrity, and variable pressure loads, with mechanical durability guaranteeing safe operation across decades of continuous use.

Customization is entirely open: dimensions can be adjusted from the 1400 mm baseline (model reference) or to specific project needs, while finishes in RAL colors, anodizing, or ecological paint adapt to the architectural identity. The door integrates into multiple opening systems—interior and exterior swing, magnetic contact systems, or optional motorization.

PV1400 is recommended for principal entrances in design residences, commercial spaces with moderate traffic, and projects where generous opening and minimalist aesthetics are design criteria. It combines seamlessly with modern lines and contemporary interiors, delivering a distinctive architectural signature.

The PV1400 pivot door delivers a 360° axial opening with distinct architectural presence, transforming your entrance into a design statement. The pivot mechanism with adjustable pins allows large-format doors without lateral hidden hinges, creating a fluid and modern effect. Symmetric weight distribution ensures superior stability and effortless operation, regardless of door dimensions.

The thermal coefficient Ud of 0.69 W/m²K (measured at standard 2000×3000 mm) ranks this door in the premium energy efficiency category, certified to EN ISO 10077-2. The core construction with aluminium and 32 mm anti-distortion polyamide, combined with dual-level EPDM perimeter sealing, minimizes energy loss and ensures outstanding thermal comfort even in cold climates. The thermal bridge is precisely controlled to prevent condensation and maintain dimensional stability over time.

The PV1400 is equipped with premium BKS hardware—a certified security cylinder with 5 keys and card access, providing robust protection against forced entry attempts. The 113 mm frame depth and low 20 mm threshold (barrier-free access without security compromise) deliver superior rigidity and impact resistance, strengthening the building envelope. For enhanced antiburglary ratings (RC2/RC3), consult our specialists at the showroom—customization is available based on geographic location and property type.

PV1400 is made-to-order with fully adaptable dimensions—you are not limited to standard formats. The 2000×3000 mm specification is a reference point for thermal certification, but proportions and heights can be varied to suit your space's architecture. The pivot opening adapts optimally to both landscape and portrait formats, with adjustable pins distributing weight perfectly regardless of size. To discuss ideal proportions and extreme limits, our showroom team will guide you through sizing and ensure compatibility with your building structure.

Installation of the pivot door requires specialist assessment of the bearing structure—pivot pins must be precisely fixed to the upper and lower beams to ensure fluid operation and longevity. The 113 mm frame depth adapts to varying masonry thicknesses, with adjustment possible during installation. We recommend installation by certified specialists who will verify frame–leaf co-planarity and calibrate adjustable pins. For non-traditional masonry (metal frames, free-standing installations), our team will propose custom fixing solutions.

PV1400 offers a broad range of premium finishes: custom RAL paint colours, solid wood veneers (walnut, oak, wenge) with natural grain, and fine-texture laminates. The 32 mm polyamide thermal bridge can be painted differently to highlight or contrast with exterior elements. Glass and leaf thickness can be adapted for perfect integration into your architectural concept. Consult with the showroom's design team to visualize options and create an entrance that reflects your space's identity.
