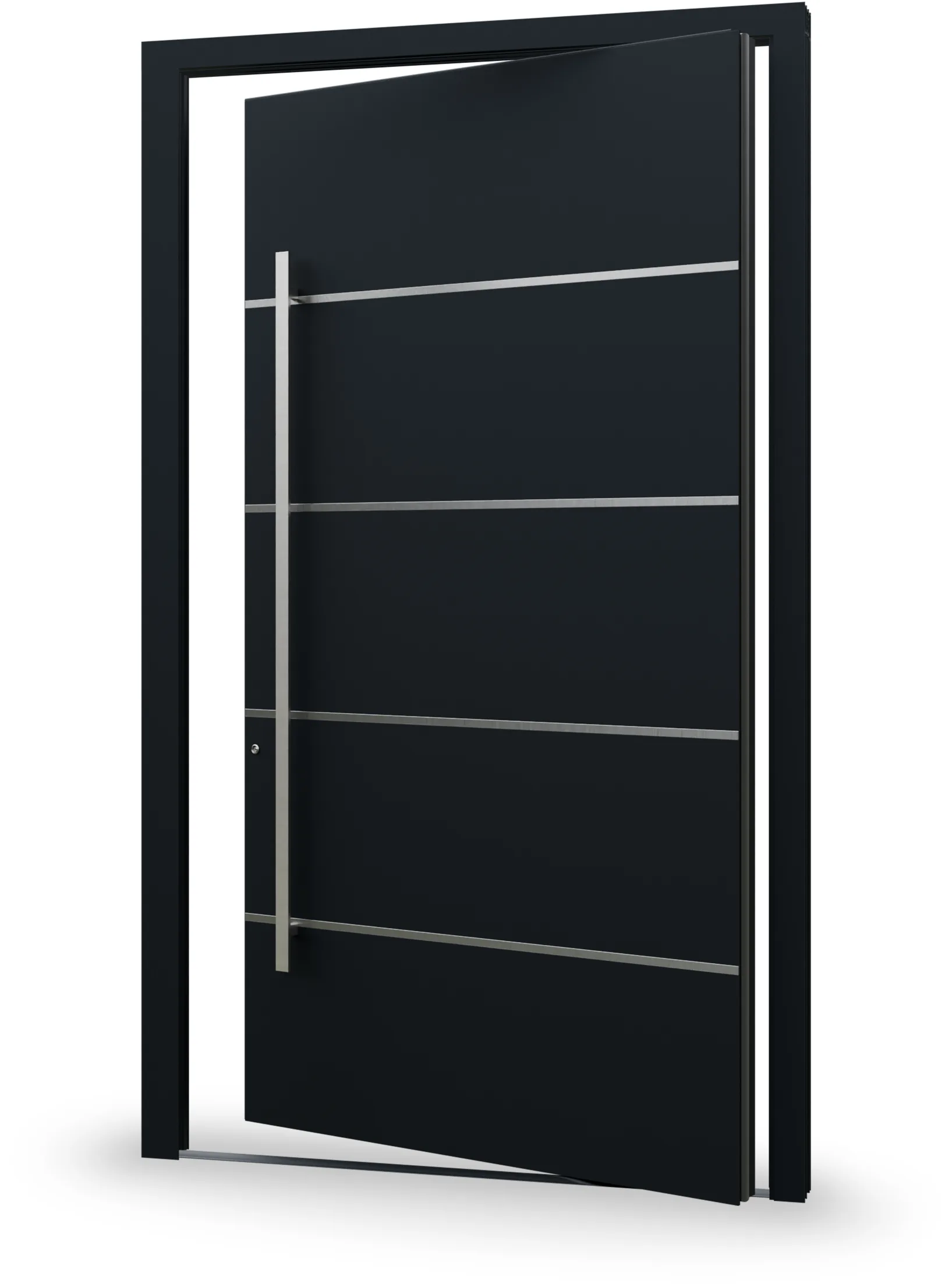

Pivot door PV1600

PV1600 pivot door — premium axial-opening system, commanding architectural presence, fully customizable for monumental entrances.

The PV1600 pivot door represents the pinnacle of axial-opening technology in the premium segment. Engineered and manufactured in Germany, this system transforms entrances into powerful architectural statements, merging refined functionality with proportions that command attention. Ideal for discerning design projects, the PV1600 sets new standards in contemporary elegance and visual impact.

's pivot mechanism features precision-engineered top and bottom pivots, enabling seamless 360° rotation without thresholds or lateral obstructions. The structural profile is optimized for maximum rigidity, accommodating sumptuous glazing or solid panels depending on transparency and privacy requirements. Available finishes are refined — ranging from anodized profiles in neutral tones to bespoke architectural coatings, each option maintaining design coherence throughout the space.

Thermal and acoustic performance correlates directly with seal integrity and glazing type. High-density gaskets ensure superior insulation, delivering effective noise attenuation and efficient climate retention. The robust aluminum construction and German-grade quality hardware guarantee long-term durability and whisper-quiet operation.

Personalization is absolute: width and height adapt to any architectural opening, and the closing mechanism—whether prominent or discreet—configures to preference. Colors are drawn from premium palettes, encompassing metallic finishes, matte or satin lacquers, and natural veneer elements for luxury-aspirant projects. Substantial weight and dimensions are handled effortlessly by the engineered pivot system.

PV1600 integrates naturally into contemporary, minimalist, or transitional interiors, where the proportion and gesture of opening become integral to the architectural narrative. It performs impeccably at primary entrances of high-end residential properties, commercial lobbies, galleries, and spaces with elevated aesthetic aspirations. Paired with marble, patinated concrete, or solid wood flooring, the door captures light and spatial dynamics with timeless elegance.

The PV1600 pivot door rotates on a central vertical axis, enabling openings up to 360°, delivering bold architectural proportions and a monumental entrance experience. Hidden pivot hinges with adjustable pins ensure balanced weight distribution and smooth operation regardless of size, up to 2000×3000 mm.

A Ud of 0.69 W/m²K indicates very low thermal losses — the PV1600 achieves Class A energy efficiency and is certified to EN ISO 10077-2. This is achieved through a 113 mm frame with 32 mm anti-warping polyamide inserts and dual-level EPDM perimeter sealing, which minimizes air infiltration.

The PV1600 is equipped with a BKS security cylinder featuring 5 keys and change card, providing burglary protection and controlled access. The premium BKS hardware integrates seamlessly into the pivot frame, ensuring secure multi-point locking compatible with high-security standards for upscale commercial and residential entrances.

The PV1600 accepts full size customization up to 2000×3000 mm, with frame and threshold adjustments of 20 mm for accessible entry. Installation on traditional masonry, concrete, or steel requires a specialized pivot bracket anchored structurally to the overhead lintel and threshold, and professional installation is recommended to ensure precise frame-to-leaf co-planarity for optimal operation.

The PV1600 offers high-quality finishes: custom RAL paint, natural veneer, or design laminate. Painted finishes are durable and UV-resistant, while natural veneers require regular maintenance with premium oils or wax to preserve appearance. Laminates are the easiest to maintain, resisting scratches and fading, making them ideal for high-traffic areas.

The dual-level EPDM sealing in the PV1600 creates two contact zones around the door perimeter — the first blocks air and moisture infiltration, while the second absorbs acoustic vibrations. This configuration delivers significant noise reduction from exterior sources and improves interior comfort, enhanced by the 113 mm frame depth and insulating core that boost overall acoustic performance.
