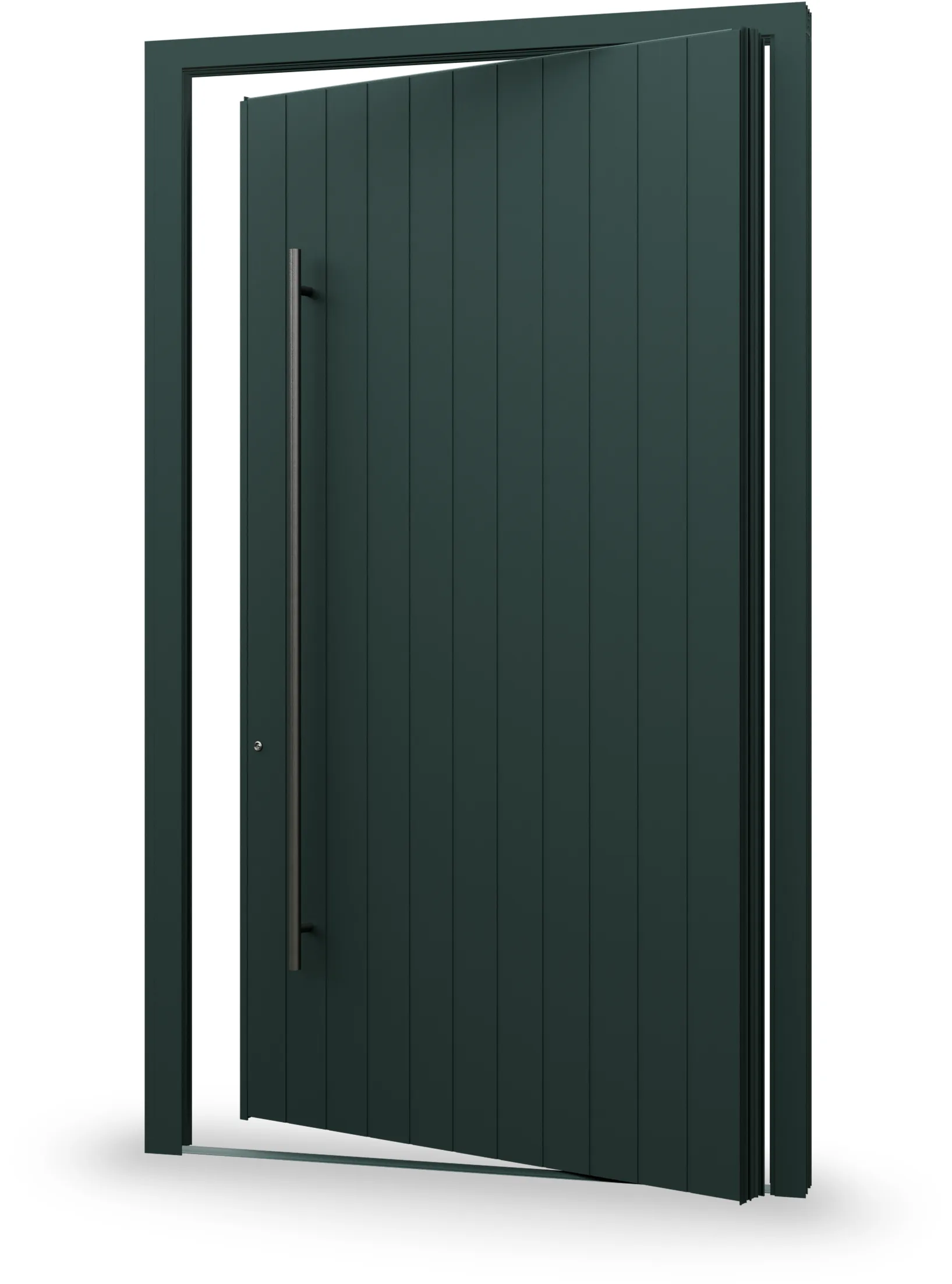

Pivot door PV1300

PV1300 pivot door — elegant axial opening, minimalist profile, architectural statement for premium entrances.

The PV1300 pivot door is an exterior access solution that emphasizes the pure geometry of contemporary design. The PV1300 model belongs to 's professional series, dedicated to high-end residential and commercial projects where the axial opening becomes an architectural element that sets the tone for the entrance.

Construction focuses on clean lines and technical precision. The system is engineered with a robust pivot mechanism that accommodates doors up to monumental proportions without compromising smooth operation. The profile design minimizes visual mass while maintaining structural integrity, allowing the door itself to float as an architectural statement. ensures compatibility with various frame materials — aluminum, wood, or composite — enabling seamless integration with contemporary or transitional facades.

Performance characteristics are calibrated for exterior use. The door system incorporates weatherproofing through precision-fitted seals and pressure-balanced thresholds, ensuring reliable thermal and acoustic separation. Heavy-duty hinges and counterweight systems are engineered for high-traffic entrances while maintaining the fluid opening gesture that defines pivot aesthetics.

Customization options span dimensions from standard widths to floor-to-ceiling installations, accommodating architectural vision without constraints. Finish options include anodized aluminum, powder-coated surfaces, or natural wood veneers. The door can integrate glazing — clear, tinted, or structured — to amplify transparency or provide privacy screening as required by the design brief.

Ideal for gallery entries, luxury residences, corporate lobbies, and premium retail spaces. The PV1300 complements minimalist, contemporary, and design-forward interiors where the entry itself must communicate quality and intentionality.

The PV1300 pivot door rotates on two adjustable pins (top and bottom) positioned outside the frame plane, enabling elegant axial openings with no visible hinges. This delivers pure architectural proportions and design flexibility — you can choose balanced (50/50, 60/40) or fully off-centre openings. The pivot mechanism supports greater weight and ensures structural stability on oversized entrances.

The PV1300 achieves Ud = 0.69 W/m²K (measured at standard 2000×3000 mm dimensions), classifying it as high-performance for premium entrance doors. This value reflects the combination of a 113 mm frame with 32 mm anti-distortion polyamide inserts and dual-level EPDM perimeter sealing. Certified to EN ISO 10077-2, it ensures minimal thermal loss and consistent comfort at entry zones.

The PV1300's security relies on professional BKS hardware with a security cylinder and complete set of 5 keys plus safety card. Multi-point sealing around the entire perimeter (2-level EPDM) prevents penetration, while adjustable pivot pins ensure precise and persistent closure. For burglary resistance certification (RC2/RC3), the construction details must align with the mounting frame — Kulttur's showroom team can verify compliance at any size and masonry specification.

The PV1300 pivot door is explicitly designed for custom projects and premium openings — non-standard dimensions are the rule, not the exception. The adjustable pivot mechanism allows free proportions on both axes (horizontal and vertical) and asymmetric split (50/50, 60/40, 70/30). Kulttur's team consults technical details at the design stage to ensure structural stability, frame compatibility, and custom finishes (painted, veneered, laminate).

Installing the PV1300 pivot door differs fundamentally from standard hinges — it requires a robust structural foundation in the threshold (under 20 mm) and side jamb to anchor the bottom pin, plus maneuvering space in the lintel for the top pin. Frames must support the leaf weight and be perfectly aligned (frame–leaf co-planarity). Masonry must be solid and level within ±3 mm. Kulttur's team provides free on-site consultation to assess compatibility and propose reinforcement solutions if needed.

The PV1300 requires minimal maintenance — the aluminium frame needs no repainting and 2-level EPDM seals remain effective for 20+ years if cleaned annually with neutral detergent. The leaf can be custom painted (RAL/NCS), veneered with natural wood, or HPL laminate for maximum durability in harsh environments. Pivot pins are pre-lubricated and need service only every 3–4 years; the BKS hardware requires no regular servicing if excessive force is avoided.
