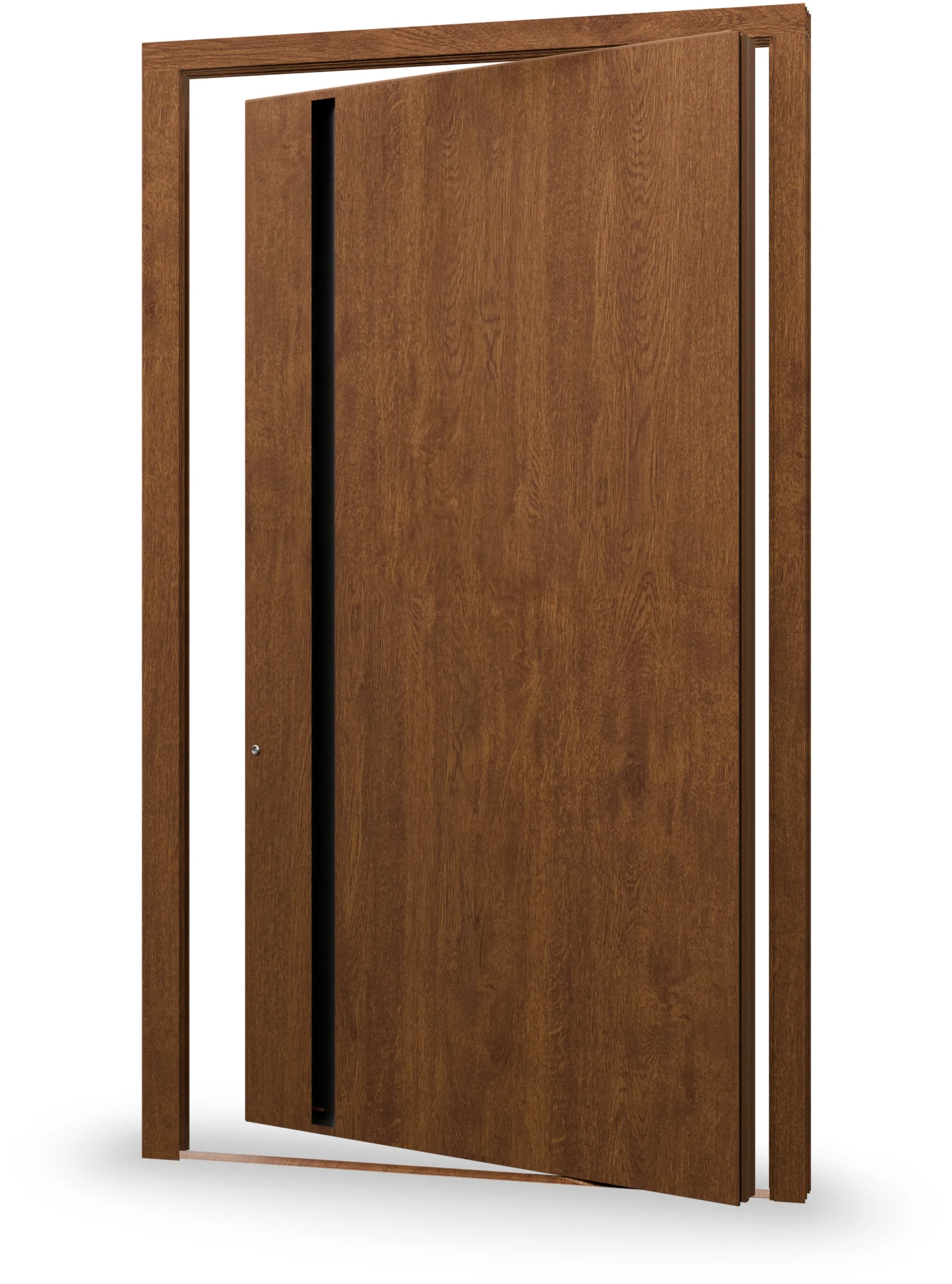

Pivot door PV2000-2

PV2000-2 pivot door — axial opening system with architectural presence and complete customization for premium entrances.

The PV2000-2 is the benchmark pivot door for high-value architecture, delivering generous openings without visual thresholds and a poised, engineered approach to entrance design. The axial pivot system is built on German engineering principles, ensuring smooth opening action and exceptional structural stability regardless of door height or width.

Aluminum profiles are finished to premium standards with optimized thickness and rigidity to support buildings with strict architectural demands. Integrated glazing — where specified — extends to the edges of the system, maximizing visual clarity and transparency. Surface treatments range from matte and polished options to complete RAL color palettes or anodized finishes for enhanced durability and weather resistance.

Thermal insulation and sealing performance meet European standards, with thermally broken profiles and elastic gaskets that prevent air infiltration and protect interiors from climate variance. The pivot mechanism is rated for extended cycle use, making it ideal for high-traffic commercial, hospitality, and residential applications. Engineering is concealed, preserving design integrity and elegant proportions.

Customization extends beyond color — dimensions, profile thickness, glazing type and configuration adapt entirely to project requirements. Opening systems can integrate automatic closers, motion sensors, or intelligent controls, transforming the entry into a unified functional and aesthetic statement.

Ideal for luxury hotels, flagship retail, corporate headquarters, and contemporary residences where architectural presence and technical performance are non-negotiable. Pairs seamlessly with continuous glazing, canopies, and large-scale design elements for cohesive high-end compositions.

The PV2000-2 pivot door rotates on a vertical axis driven by adjustable pivot hinges, not side-mounted traditional hinges. This enables proportional openings (50/50, 30/70) and a striking architectural statement with a completely unobstructed frame width. Pivot systems are ideal for premium entrances requiring spatial flexibility and minimalist aesthetics.

The PV2000-2 achieves a Ud coefficient of 0.69 W/m²K (at standard 2000×3000 mm), certified EN ISO 10077-2. Performance is backed by a robust 113 mm frame with 32 mm anti-distortion polyamide and dual-level EPDM perimeter sealing. This places it in the premium thermal category and significantly reduces heat loss during winter months.

The integrated BKS hardware on PV2000-2 features a security cylinder with 5 keys plus card. The system provides certified anti-burglary protection and flexible access management for premium residences and commercial spaces. The cylinder mechanism and coplanar pivot hinge positioning ensure multi-point locking and uniform force distribution, delivering maximum resistance to forced entry attempts.

The PV2000-2 is equipped with a 20 mm threshold, certified for accessible entry per European accessibility standards. This minimal height allows smooth wheelchair passage without compromising perimeter sealing. The pivot system requires no additional side space for traditional hinges, making it ideal for narrow entrances and homes requiring accessibility compliance.

The PV2000-2 is engineered for maximum order customization. You can specify custom dimensions (width/height) beyond standard sizes and choose from finish options (painted, veneer, laminate). The 113 mm frame structure and adjustable pivot system accommodate asymmetrical proportions (30/70 or 50/50) and integration into any premium interior design. Recommendation: consult with the showroom for technical validation before ordering.

Installation of the PV2000-2 requires structural validation of the existing frame and masonry due to pivot system weight distribution. The 113 mm frame requires compatible frames (verify with manufacturer) and coplanar anchoring for stability. Adjustable pivot hinge pins allow fine positioning after installation. Essential recommendation: entrust installation to a certified specialist to ensure perfect alignment and multi-point sealing integrity.
