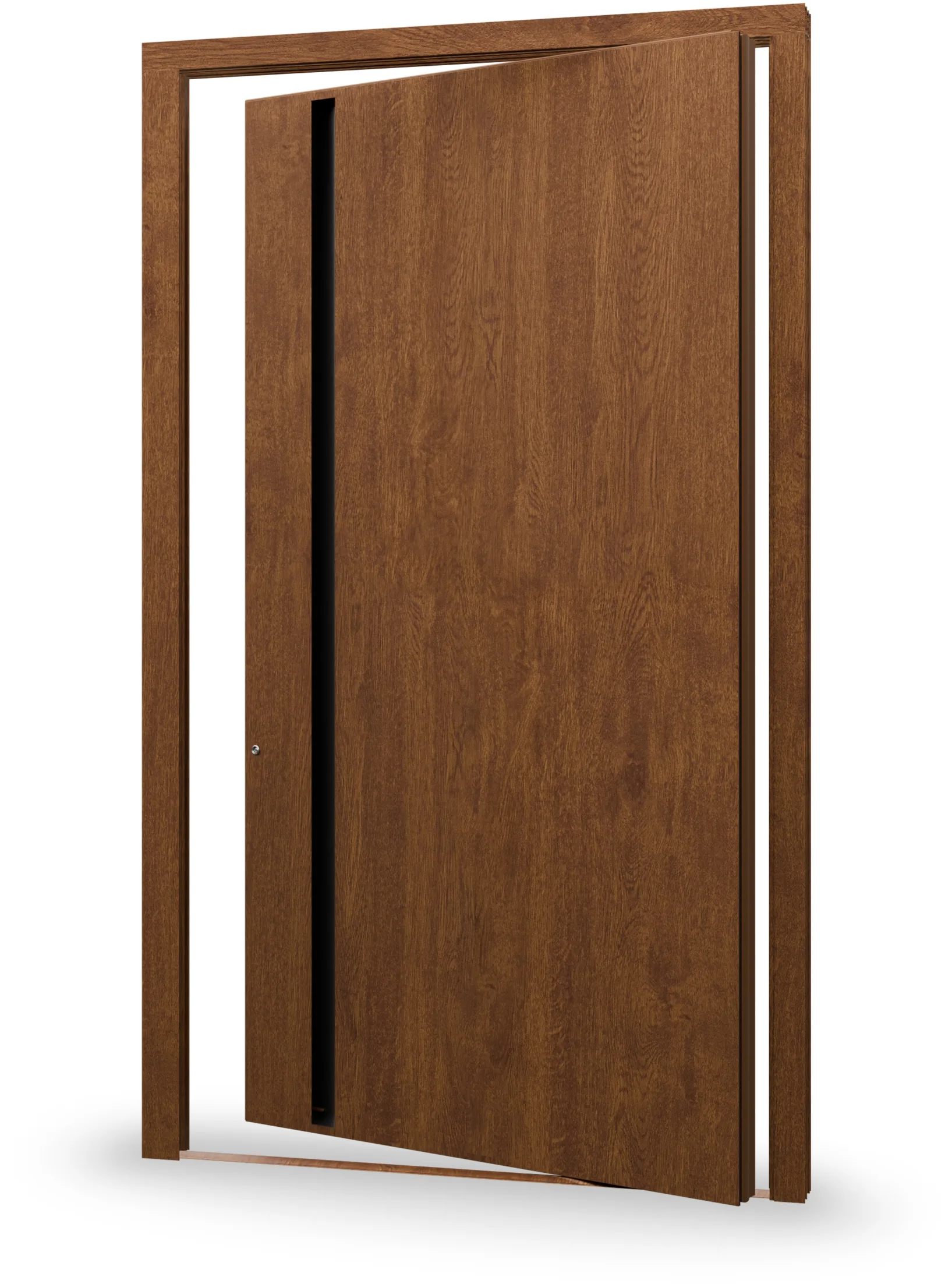

Pivot door PV2000-1

PV2000-1 pivot door — pure geometry, axial opening, and monumental proportions for exceptional entrances.

The PV2000-1 pivot door embodies German modernism applied to monumental entrance openings. Manufactured by, it belongs to a range of axial access systems designed to provide clear architectural response in high-end residential and commercial projects. The PV2000-1 model imposes itself through minimalist design and generous proportions that transform the entrance into a design statement.

The pivot mechanism construction combines German engineering precision with maximum durability materials. The structural profile is dimensioned for generous openings, ensuring stability and complete smoothness of rotative movement. Available finishes range from anodized profiles, brushed stainless steel or custom RAL, depending on architectural integration requirements. Glass can be clear, tempered or thermally treated — options that adapt to climatic context and privacy requirements.

Thermal and acoustic insulation performance is ensured through latest-generation elastomeric gaskets and dual seals. The pivot system accommodates controlled closing speeds, eliminating unexpected slamming and ensuring comfort throughout extended use. Mechanically, installation is achieved through specialized upper and lower pivot brackets, guaranteeing balance and durability even with very large openings or intensive use scenarios.

Dimensional availability is extensive — heights up to 2500 mm and widths customized to project specifications. Axial opening allows mounting without lateral constraints, ideal for halls, lobbies and main entrances of galleries or commercial spaces. The pivot module can be micro-adjusted, ensuring precision and easy access to rotation mechanisms for routine maintenance.

PV2000-1 harmonizes beautifully with marble, polished concrete or granite flooring — materials that enhance the architectural authority of the opening. It integrates seamlessly into contemporary minimalist, modern industrial or raw brutalist aesthetic. For projects requiring powerful visual signature at entry, this pivot solution redefines standards of refinement and functionality.

The PV2000-1 pivot door rotates on adjustable pins mounted at the top and bottom of the frame, not on side hinges. This enables axial opening and monumental proportions—the door swings without lateral protrusion, and the concealed mechanism creates clean design lines perfect for contemporary entrances. Adjustable pins ensure balance and long-term durability.

The PV2000-1 has a Ud coefficient of 0.69 W/m²K (at standard size 2000×3000 mm), certified to EN ISO 10077-2—placing it in the HIGH PERFORMANCE category for exterior entries. The 113 mm frame combined with 32 mm anti-distortion polyamide strip and dual-level EPDM perimeter sealing ensure superior thermal insulation and minimize heat loss in cold climates.

The PV2000-1 is equipped with premium BKS hardware—a security cylinder with 5 keys + card, providing comprehensive access control. The concealed pivot mechanism combined with the robust 113 mm frame delivers superior structural resistance. Multi-point EPDM sealing and frame-to-leaf co-planarity ensure mechanical integrity and increased resistance to forced entry attempts.

The PV2000-1 is engineered as a custom-made product with dimensional flexibility, allowing adaptation to desired monumental proportions. The door features a 20 mm threshold—classified as accessible entry standard, ideal for main entrance applications. The low threshold minimizes obstacles and ensures seamless transition between exterior and interior while maintaining thermal and acoustic performance.

The PV2000-1 pivot door, with its 113 mm frame depth, is compatible with standard frames and conventional wall construction (brick, concrete). Installing the pivot mechanism requires precision engineering—adjustable pins must be mounted exactly at vertical frame ends for optimal balance and smooth linear operation without vibration. We recommend installation by specialists or certified partners to guarantee co-planarity and lasting functionality.

The PV2000-1 features an aluminum frame with thermal core, available in painted, veneered, or laminated finishes for seamless architectural integration. Adjustable pins and dual-level EPDM sealing ensure optimal function and weather resistance for decades. Routine maintenance is minimal—periodic cleaning of the pivot bar and annual lubrication of pins; excessive force during opening/closing is not recommended.
