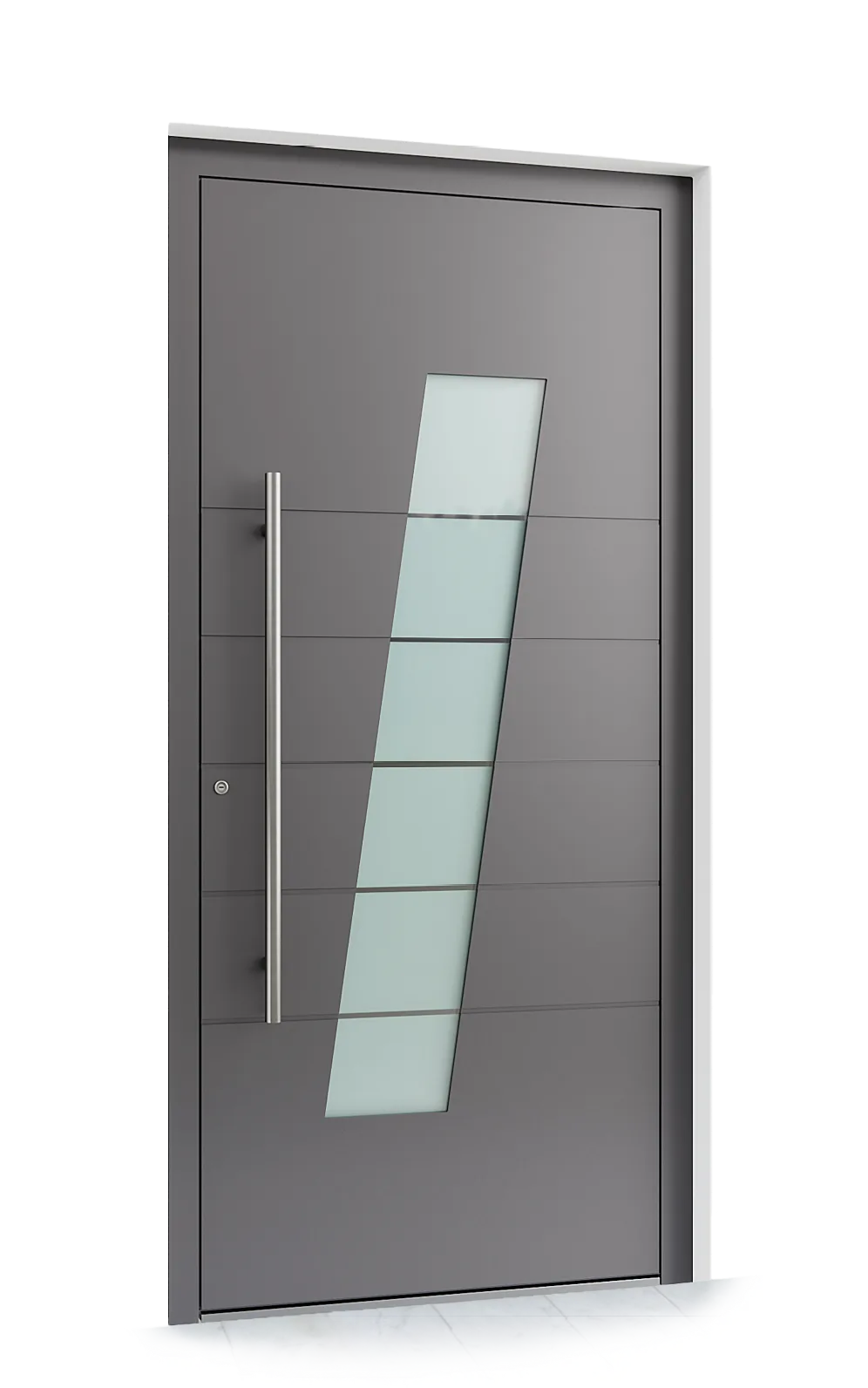

Aluminium exterior door L560 made to order

Exterior aluminium door with balanced profile and superior thermal insulation. ift Rosenheim certified, featuring quadruple glazing and 92 mm thickness for maximum performance.

The L560 exterior aluminium door represents a premium solution for primary external access points, designed for high-specification residential and commercial projects. The carefully balanced profile delivers understated elegance through clean lines, compatible with both modern and Mediterranean architecture. System depth of 92 mm ensures structural robustness and dimensional stability, while uniform profile composition integrates seamlessly with any façade design.

Construction combines 3 mm aluminium with an articulated 34 mm thermal break—an engineering approach that maintains mechanical integrity without compromising insulation performance. The quadruple glazing (44.1 triplex / 5 mm Satinato / 44.1 triplex) delivers exceptional acoustic and thermal protection, complemented by three EPDM gaskets securing durable weatherproofing. Frame depth of 80 mm and leaf thickness of 92 mm enable precise installation with zero clearance, reducing long-term deformation risks and ensuring predictable performance across seasonal cycles.

Thermal performance is certified by ift Rosenheim with a Ud coefficient of 0.85 W/m²K, positioning this door in the high-insulation category and significantly reducing energy loss while maintaining consistent interior comfort. Satinato glazing provides uniform light diffusion, eliminating direct glare, while triplex construction delivers both mechanical safety and acoustic attenuation. The triple-gasket structure minimizes air infiltration and external noise transmission—a critical advantage for residences in urban areas or near traffic corridors.

Flexible sizing options—up to 1100 × 2300 mm in standard configuration and 1200 × 2500 mm for single-leaf installation—accommodate most access openings. Door swing orientation and opening system can be customized according to traffic patterns and accessibility requirements. The profile accommodates installation on level surfaces or with slight slope variations, providing architectural flexibility.

The L560 integrates effortlessly into contemporary villas, homes with mineral or metallic finishes, and premium commercial spaces. It pairs harmoniously with natural stone flooring, polished concrete, and terracotta, creating fluid transitions between exterior and interior environments. Its discreetly elegant presence makes it the natural choice for discerning clients seeking performance without ostentation.

This L560 model achieves a Ud coefficient of 0.85 W/m²K, certified by ift Rosenheim, placing it in the premium thermal performance category for aluminium doors. This results in minimal heat loss and superior thermal comfort, directly reducing heating and cooling costs.

The L560 features a symmetric aluminium profile with 3 mm wall thickness and a 92 mm total leaf incorporating quadruple glazing and internal insulation. The profile includes an articulated thermal break of 34 mm that optimizes energy performance and structural rigidity.

The L560 is equipped with quadruple glazing (44.1 triplex / 5mm Satinato / 44.1 Triplex), providing high-level thermal and acoustic insulation. The four-layer configuration dramatically reduces heat transmission and external noise, directly contributing to the certified Ud performance.

Standard maximum dimensions are 1100×2300 mm, with single-leaf configurations reaching up to 1200×2500 mm. The L560 is available as a custom order to match your exact opening requirements and existing masonry characteristics.

The L560 features three EPDM gaskets providing multi-point sealing and optimal protection against water infiltration and air leakage. The sealing system is integrated into the profile and combined with the 92 mm total depth ensures superior performance in extreme weather conditions.

The L560 is installed in an aluminium frame with 80 mm frame depth, optimized for compatibility with standard masonry and modern insulation systems. Installation requires precise opening preparation and proper anchoring in the perimeter wall to ensure long-term sealing and stability.
