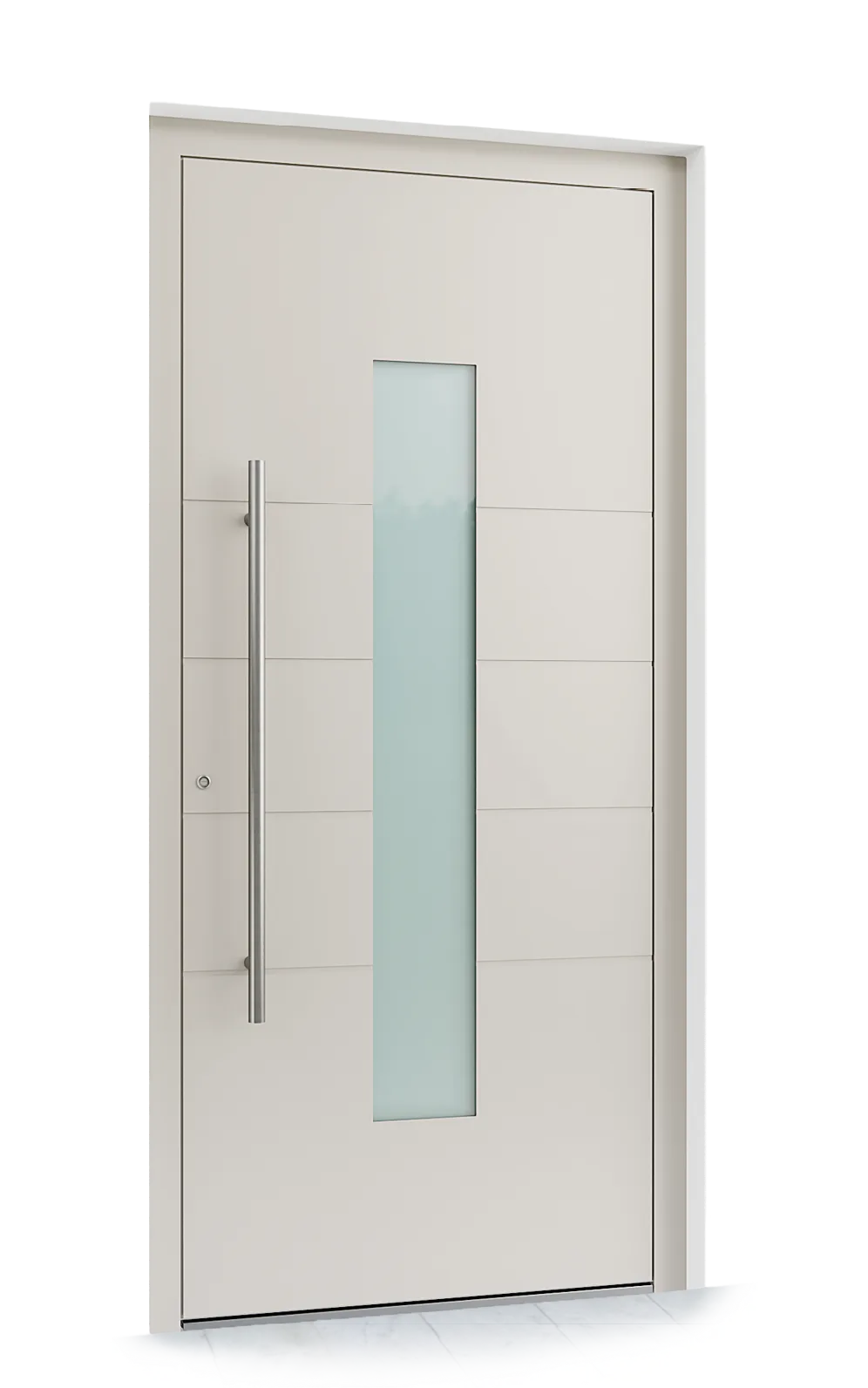

Aluminium exterior door L530 made to order

Aluminium exterior door with 92 mm profile and superior thermal performance (Ud 0.85 W/m²K). Quadruple glazing and triple EPDM sealing for maximum energy efficiency and weather resistance.

The L530 model represents a modern solution for exterior access with high standards of insulation and durability. This aluminium door positions itself in the premium range of entry systems, combining robust construction with contemporary finishing. The 92 mm profile and 92 mm leaf thickness ensure a stable structure, capable of withstanding strong winds and frequent traffic.

The construction of this door is based on anodised aluminium with a thickness of 3 mm, integrated in a system with an articulated thermal break of 34 mm. This element is essential to prevent heat transfer between the exterior and interior profiles. The quadruple glazing (44.1 triplex / 5 mm Satinato / 44.1 triplex) offers not only excellent thermal insulation but also sound protection and aesthetically pleasing transparency. Triple EPDM gaskets ensure perfect sealing against moisture and air draughts.

The thermal performance certified by ift Rosenheim with Ud 0.85 W/m²K places the L530 door in the category of high energy efficiency products, significantly reducing heat loss during the cold season. The 92 mm total depth system allows easy installation in standard construction variants and permits openings up to 1100×2300 mm, with an option for single leaves up to 1200×2500 mm. Structural resistance and superior hermeticity make this model a long-term investment.

The linear and clean design integrates harmoniously into contemporary and classical facades. The aluminium profile permits diverse finishes, adaptable to any architectural colour palette. The system can be configured with traditional swing mechanisms or pivot systems, depending on space requirements and frequency of use.

This door is recommended for residential homes, commercial buildings and public institutions where certified energy performance is required. Combined with elegant flooring from solid wood, veneer or modern polished finishes, it creates a visual and functional reference passage. Compatible with floor heating systems, the L530 door ensures optimal thermal comfort and premium aesthetics.

The thermal coefficient Ud of 0.85 W/m²K (ift Rosenheim certified) comes from four layers: quadruple glazing with Satinato and Triplex, plus a 34 mm articulated thermal break in the aluminium profile. This combination ensures superior heat retention and significantly reduces heating energy consumption.

The door features three EPDM gaskets in a multi-point sealing system that creates a continuous barrier across three sealing levels: primary, intermediate, and final. These full-profile EPDM gaskets prevent rainwater and cold air infiltration, ensuring performance in severe weather conditions.

Standard maximum dimensions are 1100×2300 mm (single opening), but for larger configurations, the single-leaf version accommodates up to 1200×2500 mm. Full customization is possible: we can adapt any dimension within structural limits and local building codes. Contact our sales team for custom configurations.

The total system depth is 92 mm (frame 80 mm + leaf 92 mm), requiring a masonry opening of at least 94-96 mm for installation clearance. Installation is done with metal anchors and polyurethane foam, followed by acrylic sealing. We recommend checking level and plumb to ensure optimal performance of the closing mechanisms.

The four-layer system consists of two 44.1 mm Triplex panes with 5 mm Satinato in between, laminated with PVB interlayer that dampens sound and reduces noise by 28-32 dB on average. The Triplex structure prevents shattering and provides dual protection: acoustic insulation and impact resistance.

The aluminium profile requires monthly cleaning with lukewarm water and mild detergent (avoid abrasive agents). For the EPDM gaskets, check their condition regularly and apply silicone protectant annually. Quadruple glazing is cleaned with standard glass cleaner. Annual inspection of hinges and hardware ensures smooth operation. The product is manufactured in Greece with long-term durability tolerances.
